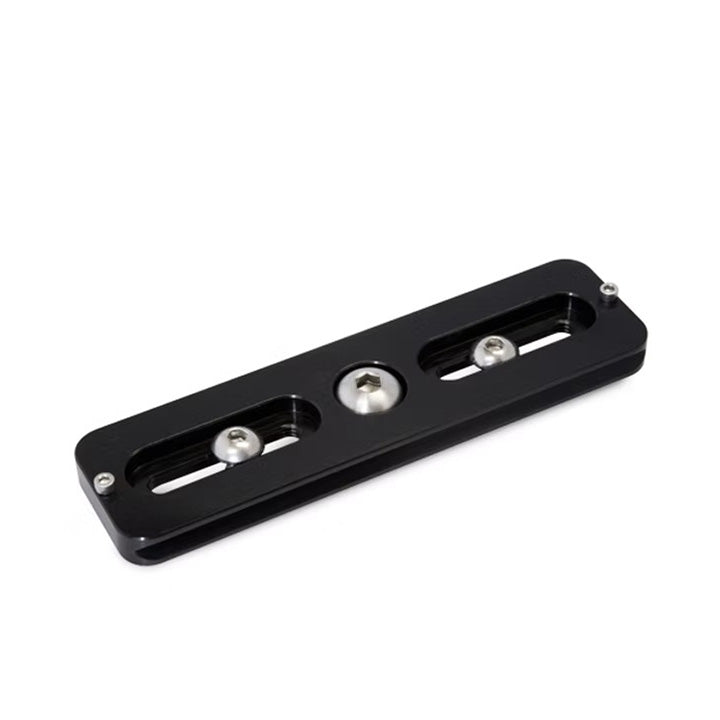

Our standard 5.5" lensplate comes with the following features:
-
Hard anodized black finish
-
Double-dovetail design enables use of our Quick Release flash brackets (requires 3/4" of lensplate exposed past your lens foot)
-
3 Mounting screws for achieving multiple fit options on larger lenses
-
Two 1/4"-20 captive screw, 1 centrally located 3/8"-16 captive screw
-
2x Safety-screws
-
5/32" and 3/32" allen keys
-
Weighs in at 4.1 oz
The NX3 fits most larger telephotos with multiple mounting holes such as:
-
400mm F2.8
-
500mm F4
-
600mm F4
This plate is functionally identical to the NX4 (7.0" plate) but is somewhat shorter to allow easier fit into hard travel cases. Make sure you leave 3/4"-1" of room for a flash bracket if you are considering this plate-- the NX4 may be a better option.
Compatible with all Arca-Swiss style clamps***
***Please note we cannot guarantee fit with other manufacturers CAM-Type Lever type quick releases, only screw-type. 99.9% of customers report perfect fit but we do not have control over other company's manufacturing process or control their tolerances!!!
