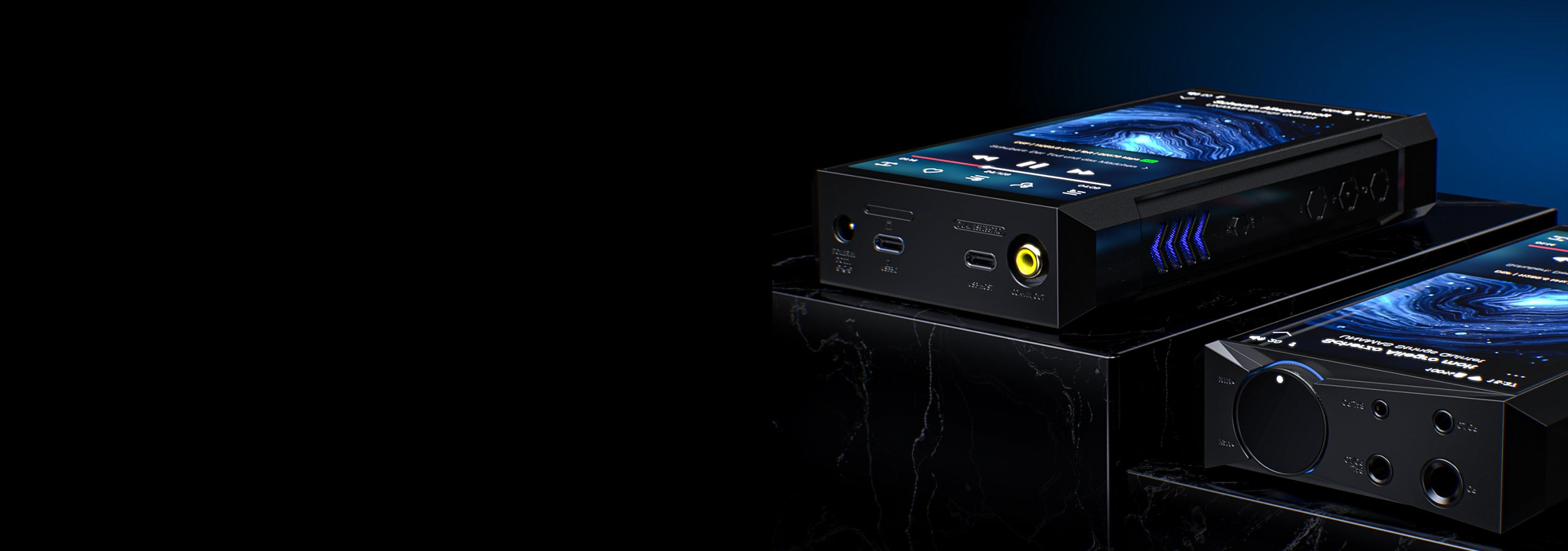

FiiO M17 Portable Desktop-Class Digital Audio Player

Redefining portable expectations
The smart desktop-class M17 is an entirely new chapter of FiiO digital audio players. Its desktop-grade DAC, amplification, power supply, etc. give it the output power and sound quality to rival and perhaps even surpass highly-regarded desktop systems – but in a portable package. Let the M17 redefine what is possible with portable audio players.

Desktop-league DAC ES9038PRO
The left and right audio channels each contain a desktop-class, 8-channel ES9038PRO flagship DAC. This means that each audio channel has 8 parallel outputs summed together for superior resolution and minimal distortion for extremely pure audio reproduction.

Desktop-class THX 788+ headphone amp
Desktop-class amplification also plays an important role in the M17. FiiO and THX jointly developed the exclusive THX AAA 788+, an upgraded version of the original op-amp. Compared to the original, output power is increased by 225% up to 3000mW per channel with a lower output impedance – allowing it more effortlessly power all kinds of headphones.

Desktop-grade gain
Under battery power, there are 4 gain levels: low, medium, high, and headphone mode. When under DC mode, the Enhanced over-ear headphone mode gain is unlocked, with a truly desktop level of amplification gain. In balanced output, gain can get as high as 16dB – allowing the M17 to easily drive most headphones.

Desktop-level connectivity
Thanks to its larger size, the M17 features a variety of connectivity options allowing for many different convenient use cases

Desktop-tier heat dissipation
With exceptional audio quality comes large power consumption, so effective heat dissipation was a large focus when designing the M17. Not only are "H" type heat dissipation and VC liquid cooling technologies adopted, the M17's 151g unibody aluminum alloy frame also effectively transfers heat out of the device. Finally, the cooling fan stand also further makes sure heat is rapidly transported away.

10-band PEQ precise tuning
Born for good sound
The PEQ (Parametric Equalizer) function was designed for the M17, which supports 10-band self-defined tuning. On the FiiO Music App in the M17, users can self-adjust the frequency, gain level, Q value, etc., achieving more accurate frequency response among every frequency range while ensuring high-fidelity sound quality. It supports up to 192kHz/24bit under PEQ style.

Physical digital-analog separation
For reduced interference
Within the M17 are 17 PCBs with immersion gold finish, with the analog and digital sections physically separated by being on two different boards to reduce interference between the two portions. 7 high-conductivity copper alloy shields also provide shielding to greatly reduce internal and external electromagnetic interference on analog audio signals within the M17.

Highly-optimized modular internal structure
The M17's design took 1.5 years to complete, going through 6 major design iterations with 12 rounds of internal structural design optimization. The result is a device that makes excellent use of its internal space. Within the M17 are carefully stacked analog and digital boards with thoughtful use of stainless-steel hexagons – which allowed FiiO to stuff nearly twice the surface area of PCBs compared to normal in such a limited space.
